If you've ever gone to swap a transmission on a diesel engine — or tried to mate an engine to a gearbox it was never originally paired with — you've probably run into SAE bellhousing numbers. And if nobody explained them to you upfront, you've probably also run into the wrong part showing up at the shop. Let me break this down the way I'd explain it at the bench.
What Is an SAE Housing Number?
SAE (Society of Automotive Engineers) bellhousing numbers are standardized classifications that define the physical interface between an engine's flywheel housing and a transmission or pump. Think of it as a universal sizing system — instead of every manufacturer doing their own thing, SAE stepped in and said "if your bellhousing is this diameter, with these bolt holes in these positions, it's SAE No. X." That way, a transmission built to SAE No. 1 will bolt right up to any engine flywheel housing built to the same spec, regardless of who made either one.
This matters enormously in industrial, agricultural, marine, and heavy-duty truck applications where you're regularly mixing and matching engines, transmissions, PTOs, and hydraulic pumps from different manufacturers.
Pro tip: Never assume two components will mate up just because they're "both diesel" or "both the same horsepower class." SAE number is the spec that matters. Two engines of similar displacement can be completely different SAE housings.
The Big Three: SAE 1, 2, and 3
In diesel applications — especially mid-range to heavy-duty industrial and commercial engines — you're going to see SAE 1, 2, and 3 the most. Here's a quick rundown of where you typically find each one:
The Measurements You Need to Know
Every SAE bellhousing classification comes down to four key measurements. Get these wrong and nothing lines up — and sometimes you won't even know it until you've already tried to bolt it all together on the floor.
| Measurement | What It Is | Why It Matters |
|---|---|---|
| Pilot Inner Diameter | The bore that centers the transmission input shaft | Must match the mating adapter or input shaft nose exactly |
| Bolt Circle Diameter | Diameter of the circle the mounting bolts sit on | Determines bolt pattern — wrong BCD means no bolt-up |
| Bell-Housing Outer Diameter | Overall outside diameter of the housing face | Clearance and adapter fitment |
| Bolt C-to-C Distance | Center-to-center distance between adjacent bolts | Confirms bolt spacing is correct before drilling or ordering adapters |
Full SAE Reference Chart

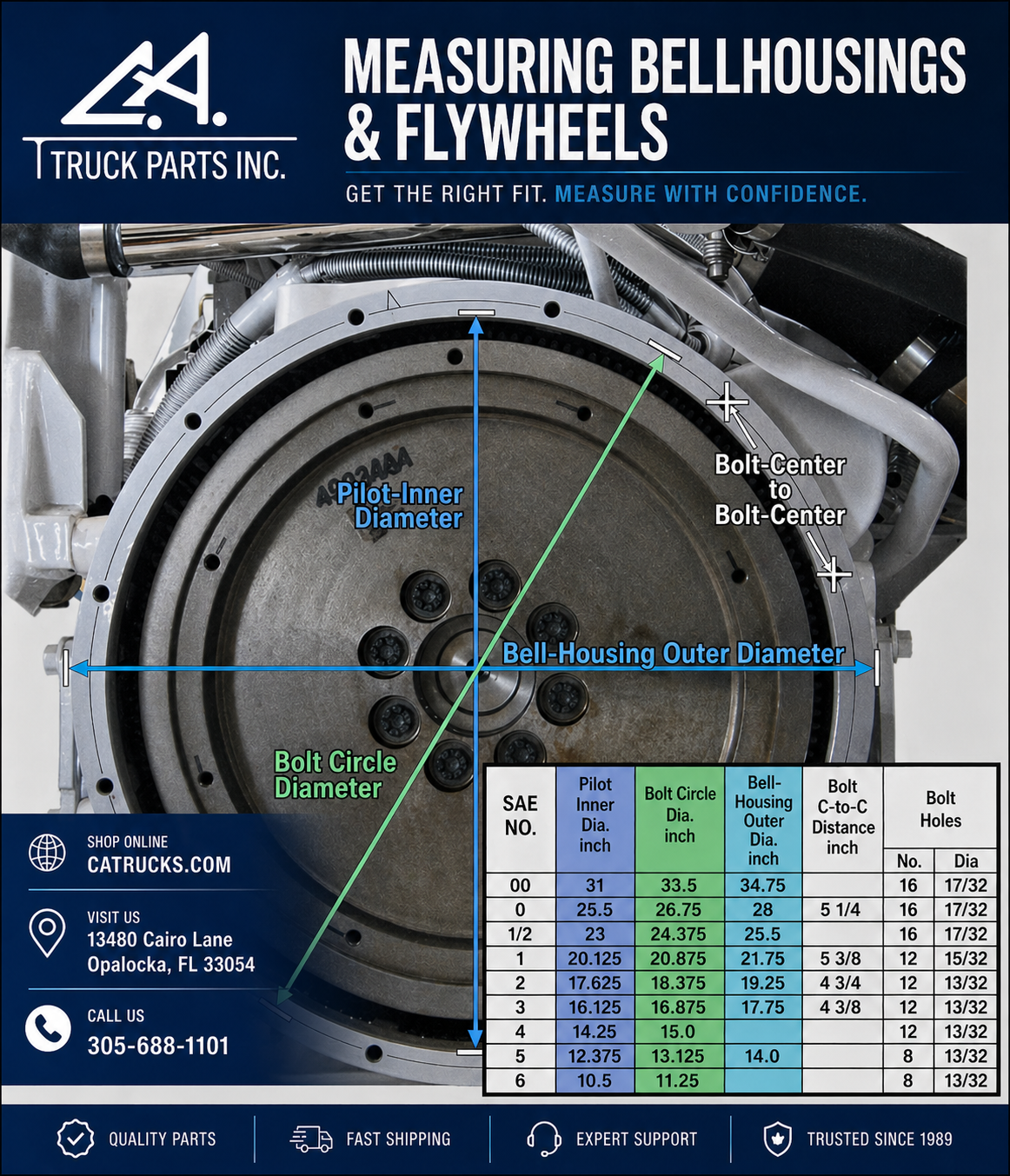

Here are the standard SAE housing specs. The highlighted rows (1, 2, 3) are the ones you'll deal with most often in diesel applications:
| SAE No. | Pilot Inner Dia. (in) | Bolt Circle Dia. (in) | B.H. Outer Dia. (in) | Bolt C-to-C (in) | No. of Bolts | Bolt Dia. |
|---|---|---|---|---|---|---|
| 00 | 31 | 33.5 | 34.75 | — | 16 | 17/32 |
| 0 | 25.5 | 26.75 | 28 | 5 1/4 | 16 | 17/32 |
| 1/2 | 23 | 24.375 | 25.5 | — | 16 | 17/32 |
| 1 | 20.125 | 20.875 | 21.75 | 5 3/8 | 12 | 15/32 |
| 2 | 17.625 | 18.375 | 19.25 | 4 3/4 | 12 | 13/32 |
| 3 | 16.125 | 16.875 | 17.75 | 4 3/8 | 12 | 13/32 |
| 4 | 14.25 | 15.0 | — | — | 12 | 13/32 |
| 5 | 12.375 | 13.125 | 14.0 | — | 8 | 13/32 |
| 6 | 10.5 | 11.25 | — | — | 8 | 13/32 |
Why This Is Critical for Engine Conversions
Here's where the rubber meets the road. When you're doing an engine conversion — say you're pulling the original gas or diesel and dropping in a different engine — you are almost never guaranteed the bellhousing will match. Even within the same brand, different engine families can have different SAE numbers.
Before you commit to any conversion, you need to measure both sides: the replacement engine's flywheel housing and the transmission's bell face. If the SAE numbers match, you may be able to go direct or use a simple adapter plate. If they don't, you're looking at a custom adapter, a different flywheel, or sometimes a whole different transmission.
Measure Twice, Order Once
I keep this chart on hand specifically because customers come in all the time saying "it should fit, they're both diesels." Sometimes they're right. A lot of times they're not. Taking five minutes to measure the pilot bore, walk the bolt circle, and check your C-to-C distance saves days of headache and money on parts you can't return once they've been to the floor.
For industrial applications especially — generator sets, skid-mounted equipment, marine drives, off-highway machinery — these specs are everything. The SAE standard exists precisely so components from different manufacturers can work together reliably. Use it.
